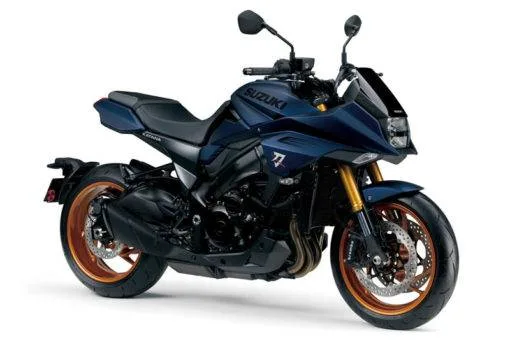

GSX-S1000SRQ M4 Katana

FINE CRAFTSMANSHIP

The Japanese Katana is beautiful to gaze upon and unbelievably exciting to wield. The epitome of fine craftsmanship, this famed sword combines sophisticated Japanese aesthetics and pure beauty into a sharp design. These characteristics made it the perfect motif for the Suzuki KATANA.

The KATANA also symbolises well Suzuki’s uncompromising commitment to craftsmanship. Suzuki’s dedication to creating distinctive beauty includes paying due respect to tradition while at the same time aiming to incorporate the latest advances in styling and technology.



LONG STROKE 999CC ENGINE

The engine features a long-stroke design with a 73.4mm bore and 59.0mm stroke resulting in a broad power range delivered smoothly across the entire rev range.

Producing 110kW (150PS) @10,000rpm with 108Nm of torque @9,500rpm putting the power to the ground through a back-torque limiting clutch.

State-of-the-art technology provides ultimate efficiency, combined with it’s addictive induction noise, makes every ride, a sheer exciting one.

KATANA THEMED MULTI-FUNCTION LCD DISPLAY

A LCD brightness-adjustable instrument cluster packs a wide range of useful information into a relatively compact form factor. The panel features a custom display with amber back-lighting exclusive to the MY22 KATANA creating a unique contrast that clearly displays the lettering against the black background when riding at night, but that looks white when riding in daylight to maintain clear visibility of the displayed information.

A brief custom animation plays when the ignition key is turned on, offering a playful presentation that is pleasing to the eye and heightens anticipation of the ride to follow.

KYB SUSPENSION

43mm gold KYB inverted front forks give a ride that is sporty yet plush. They feature fully adjustable damping, rebound, compression and spring preload. A single KYB rear shock features adjustable rebound damping and spring pre-load.

BREMBO CALIPERS

Brembo radial mount monoblock front brake calipers are mated with Ø310mm floating-mount dual discs to provide powerful braking performance. Each caliper has four opposing Ø32mm pistons.

BOSCH ABS

The Antilock Brake System (ABS) control unit, produced by BOSCH, is compact and light, weighing in at just 640g. It monitors wheel speed 50 times per wheel rotation, and matches stopping power to available traction.





Chassis

Compact and lightweight

The compact, lightweight twin-spar aluminium chassis is engineered to provide agility, ease of control and a fun-to-ride character riders will enjoy. It is also aimed to perform best in real world riding conditions on public roads, in city traffic, on the highway, or on rural and twisty roads.

Spark Plugs

NGK Iridium

Iridium spark plugs heighten the spark strength and combustion efficiency over conventional plugs, thereby contributing to higher power, more linear throttle response, easier engine start-up, and a more stable idle.

Cooling System

Oil Cooler

The engine uses a liquid-cooled oil cooler as opposed to the air-cooled type as found on the GSX-R1000. Both lighter in weight and more compact size for a cleaner look.

Design

Key Mascot with KATANA logo

A custom-designed ignition key sporting the KATANA logo on the grip end adds a luxurious touch that instils greater pride of ownership.

Ergonomics

Two-tone Seat

The black and grey two-tone seat features a stepped design that maintains the sleek profile of the KATANA while ensuring a comfortable riding position and positive footing for the rider. Passenger comfort is also a priority, with the seat strap design ensuring a good grip.





LED LIGHTING

Distinctive styling points all round. The vertically-stacked LED headlight and front position lights accent the sharp lines of the front cowling and are matched with LED turn signals and an LED tail light unit.

3-MODE TRACTION CONTROL

This track-bred technology provides greater confidence and reduces fatigue by delivering control over engine output that helps prevent rear wheel spin. The system operates so smoothly and naturally that it does not interfere with handling, even when the rider wishes to engage in aggressive sports riding. The rider can freely select one of three modes using the convenient handlebar switch. Mode one is for sport riding with minimal intervention; mode two offers the ideal balance for typical road conditions; and mode three delivers maximum traction control when riding in poor conditions.

SATELLITE REAR FENDER

The KATANA is the first Suzuki motorcycle to feature a small rear fender supported by the swingarm that hugs the rear tyre. Moving it, along with the rear indicators and license plate holder, to this position eliminates parts extending from under the seat to give the tail section cleaner lines and a tougher, lighter new look.





POWERTRAIN

DISPLACEMENT: 999cc
ENGINE: In-line four-cylinder, liquid-cooled, DOHC
TRANSMISSION: 6-Speed constant mesh with back-torque-limiting clutch

SUSPENSION

FRONT SUSPENSION: 43mm KYB inverted forks with adjustable compression, rebound and spring preload
REAR SUSPENSION: Link type, KYB shock with adjustable rebound damping and spring preload

BRAKES

FRONT BRAKES: Brembo Monobloc Radial-mount 4-piston calipers, dual 310mm floating discs with ABS
REAR BRAKES: Nissin single-piston caliper, 220mm disc

DIMENSIONS/CAPACITIES

LENGTH: 2125mm
WIDTH: 830mm
HEIGHT: 1110mm
WHEELBASE: 1460mm
SEAT HEIGHT: 825mm
FUEL CAPACITY: 12.0L
WET WEIGHT: 215Kg

WARRANTY

WARRANTY: 3 Year Unlimited Kilometre (2 Year Std + 1 Year Bonus
